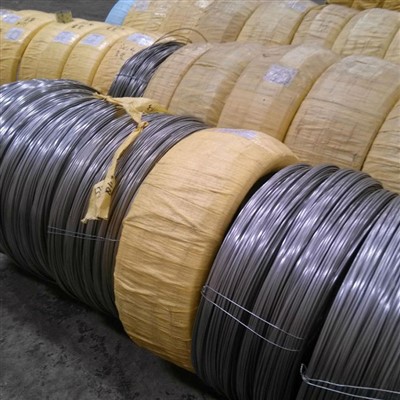

304 Stainless Steel Wire
304 stainless steel wire is a versatile and widely used material known for its excellent properties, including corrosion resistance, strength, and durability.Offers excellent resistance to a wide range of atmospheric environments and many corrosive media. It is particularly resistant to oxidation and can withstand rusting in most circumstances.
Chemical Composition
|
Element |
C |
Cr |
Ni |
Mn |
Si |
P |
S |
|
Percentage |
0.08% max |
18.0 – 20.0% |
8.0 – 10.5% |
2.0% max |
1.0% maximum |
0.045% max |
0.030% max |
Physical Properties
|
Density |
0.29 lb/in³ (8.03 g/cm³) |
|
Electrical Resistivity |
72.0 µin x 10^-6 (185 µm) at 68°F (20°C) |
|
Thermal Conductivity |
8.0 Btu·in/(ft²·hr·°F) (11.5 W/m·K) at 68°F (20°C) |
|
Melting Range |
2550-2650°F (1399-1454°C) |
Mechanical Properties
|
Tensile Strength |
Yield Strength |
Elongation |
Hardness |
|
550 MPa (79,775 psi) minimum |
240 MPa (34,809 psi) minimum |
55% minimum |
Rockwell B 92 maximum |
Generally non-magnetic in the annealed condition, which is beneficial for applications requiring minimal magnetic interference.Its smooth, non-porous surface makes it easy to clean and sanitize, making it ideal for applications in the food processing and medical industries.Safe for use in medical devices and equipment that come into contact with the human body.When properly handled after forming, they will solidify less than most other spring materials at temperatures up to 500°F. Type 304 material is slightly magnetic in the spring state due to some martensite transformation during the drawing operation. The greater the amount of cold rolling, the higher the degree of magnetism.
