Sch 40s Pipe
Outer Diameter (OD): For a 3-inch NPS Schedule 40S pipe, the OD is approximately 3.5 inches (88.9 mm).
Inner Diameter (ID): The ID of a 3-inch Schedule 40S pipe is approximately 3.068 inches (78.00 mm).
Schedule 40S pipe refers to a type of stainless steel pipe characterized by its specific wall thickness, which is defined by the Schedule 40 standard, and the "S" designation indicating that it is a stainless steel pipe.Schedule 40S pipe is a robust and versatile component used in various applications, offering strength, durability, and resistance to corrosion and high pressures. Its stainless steel construction makes it suitable for industries requiring reliable performance in challenging environments, including chemical processing, water systems, and marine applications. Adhering to relevant standards and proper maintenance practices ensures that Schedule 40S pipes provide long-lasting service and meet the specific requirements of their intended applications.
Products Description
|
Name |
Stainless steel pipe |
|||||
|
Material Grade |
201 ( Ni 1.2%),
202 (Ni 3.5%~4.5%), 301(Ni 5%) 304 (Ni 8%, Cr 18%), 316 (Ni 10%, Cr 18%), 316L (Ni10%~14%), 430 |
|||||
|
Tolerance |
a) Outer diameter: +/- 0.2mm
b) Thickness: +/- 0.02mm c) Length: +/- 5mm |
|||||
|
Mechanical Property |
Material Item |
201 |
202 |
304 |
316 |
|
|
Tensile Strength |
≥535 |
≥520 |
≥520 |
≥520 |
||
|
Yield Strength |
≥245 |
≥205 |
≥205 |
≥205 |
||
|
Extension |
≥30% |
≥30% |
≥35% |
≥35% |
||
|
Hardness (HV) |
<253 |
<253 |
<200 |
<200 |
||

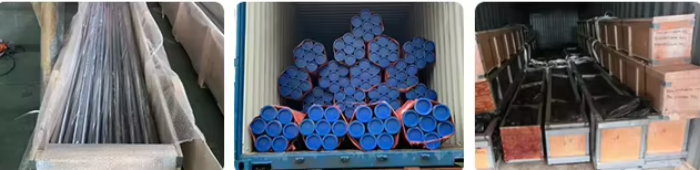

Transportation

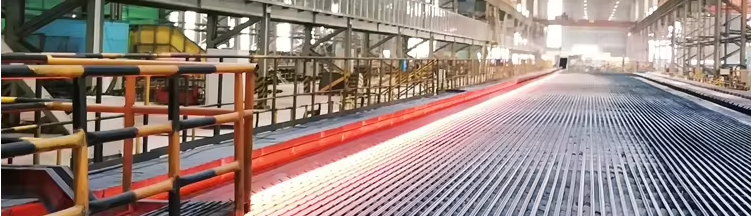

Factory
Certificate
Stainless Steel Supplier | Since 2005
Providing Customized Solutions for stainless steel
Tieyao stainless steel provides different grades and specifications of stainless steel, precision alloys, high-temperature alloys, and special steels in the form of strips, sheets/plates, tubes/pipes, bars, wires, and profiles.
1. Cost-effective customized material solutions.
2. Meet customers' high standards and diverse needs.
3. Strict quality control that meets exact specifications for your applications
4. Compliance with standards, such as ASTM, EN, and JIS, ensuring reliability and trustworthiness.
5. Committed to Timely Delivery, Ensuring Your Projects Stay on Schedule.
6. Exceptional After-Sales Service, Supporting You Every Step of the Way.
